CARACTÉRISTIQUES PRINCIPALES

• Design totalement modulaire
• Connecteur 16 broches 12VHPWR (600W)
• Câbles plats
• Certification 80 Plus Gold
• Correction active du facteur de puissance
• Protection OVP, OCP, OPP, OTP, SCP, UVP de niveau industriel
• Topologie LLC Half Bridge avec design modulaire DC-DC
• Ventilateur 120 mm FDB

• Overflow with Power

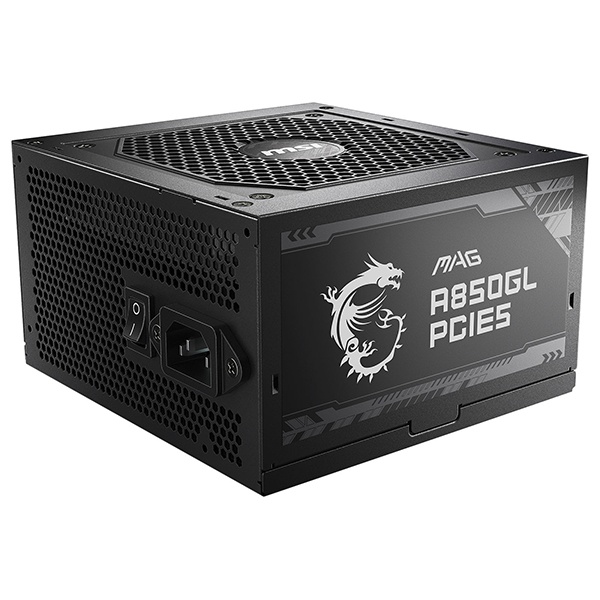

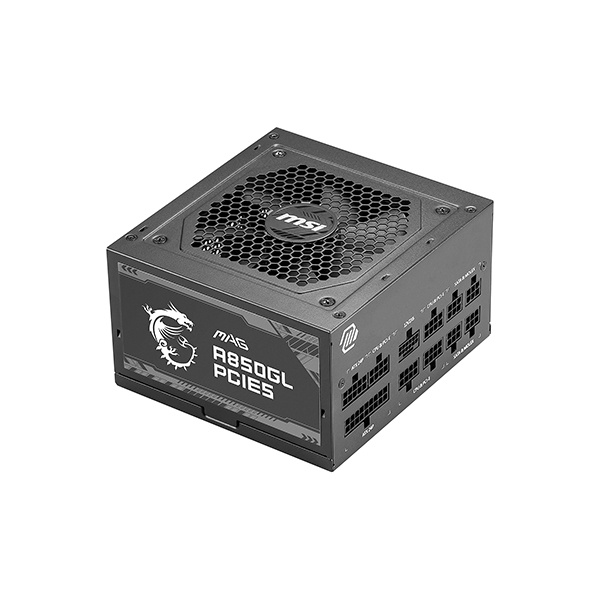

  The MAG A850GL PCIE5 power supply offers 80 PLUS Gold-certified energy efficiency, ATX 3.0 compatibility, PCIe 5.0 GPU support (up to 600W), and a Fluid Dynamic Bearing (FDB) fan for quiet and stable performance.



  80 PLUS Gold

  The efficiency of a power supply directly influences system performance and power consumption.

  An 80 PLUS Gold certified rating means higher efficiency (up to 90%) and reduces internal thermal loading.

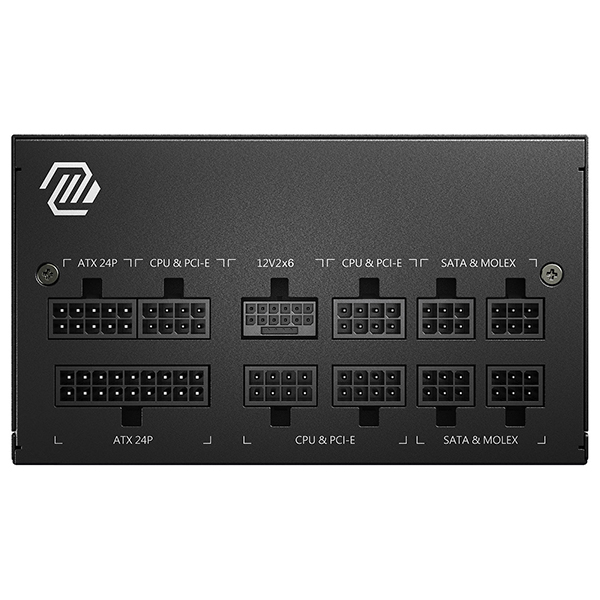

  ATX 3.0 Compatible, Fully Modular

  Being ATX 3.0 compatible, the MAG A850GL PCIE5 power supply can handle up to 2x total power excursions and 3x GPU power excursions.

  A fully modular design means that only the connectors required for by the build are used. This significantly reduces cable clutter, simplifies the overall build and improving airflow.



  PCIe 5.0 GPU Supported

  The MSI MAG A850GL PCIE5 power supply features extra GPU power feeds (4 x 8-pin VGA connectors) to support a broad array of NVIDIA and AMD graphics cards.

  Alternatively, through the native 16-pin PCIe connector, the PSU can provide up to 600W of power to a PCIe 5.0 GPU.



  Compact Size

  A compact 140 mm-long and 150 mm-wide ATX form factor ensures a comfortable and easy fit in most PC cases. This frees up more space for cable management and airflow to the rest of the system.
