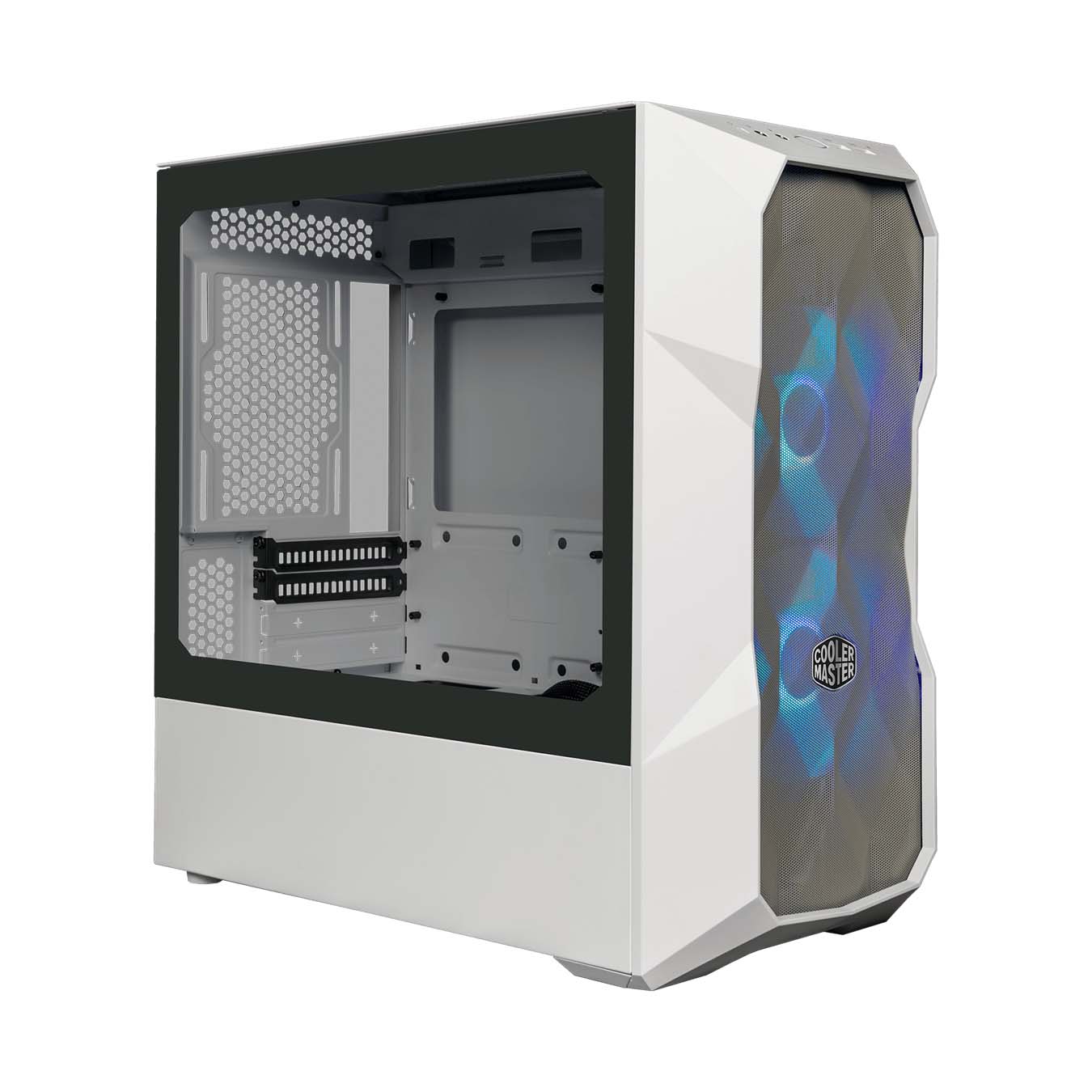

| Model Number |
TD300-KGNN-S00, TD300-WGNN-S00 |
|
| Exterior Color |
Black, White |
|
| Materials - Body |
Steel, Mesh, Plastic |
|
| Materials - Side Panel |
Tempered Glass |
|
| Dimensions (L x W x H) |
366.5 x 210 x 410mm (Body Size), 433 x 210 x 420.5mm (incl. Protrusions) |
|
| Volume |
38.24L (incl. Protrusions) |
|
| Motherboard Support |
Mini ITX, Micro ATX |
|
|
|
|
|
| 2.5" / 3.5" Drive Bays (Combo) |
2 |
|
|
|

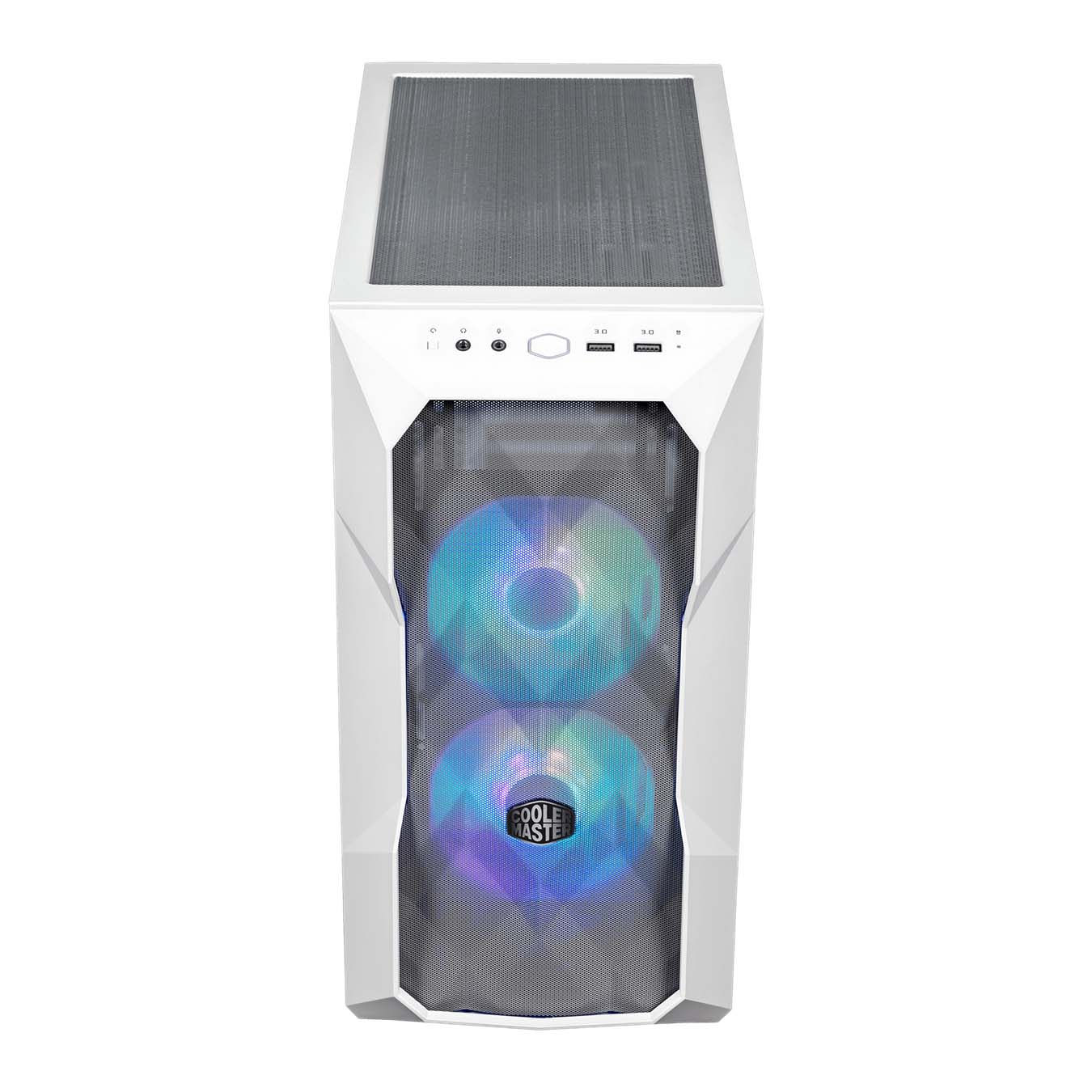

| I/O Panel |
2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Hub |
|
| Pre-installed Fans - Top |
N/A |
|

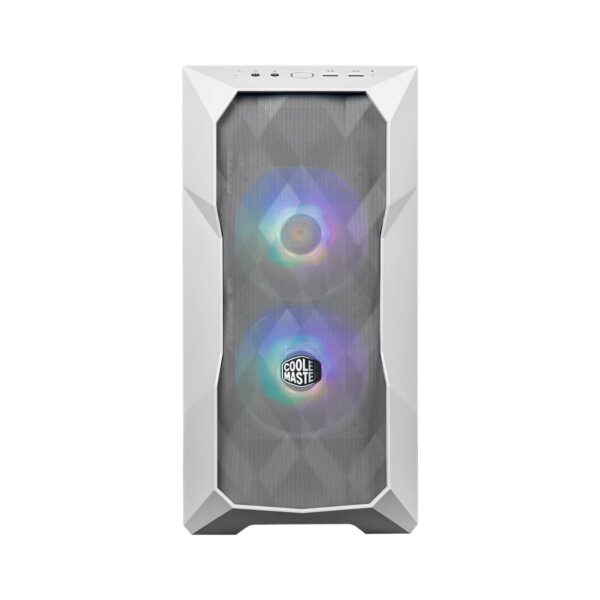

| Pre-installed Fans - Front |
2x 120mm CF120 ARGB Fan |
|
| Pre-installed Fans - Rear |
N/A |
|
| Pre-installed Fans - Bottom |
N/A |
|
| Fan Support - Top |
2x 120mm / 2x 140mm |
|
| Fan Support - Front |
3 x 120mm* / 2 x 140mm, *can only mount behind the front plate |
|
| Fan Support - Rear |
1x 120mm |
|
| Radiator Support - Top |
120mm, 140mm, 240mm, 280mm |
|
| Radiator Support - Front |
120mm, 140mm, 240mm, 280mm |
|
| Radiator Support - Rear |
120mm |
|
| Clearance - CPU Cooler |
166mm |
|
| Clearance - PSU |
325mm (w/o front radiator & drive cage), 140mm (drive cage in backmost position) |
|
|
|
| Cable Routing - Behind Motherboard Tray |
18-22mm |
|
| Dust Filters |
Front, Top, Bottom |
|
| Power Supply Support |
Bottom Mount, ATX |
|
|
|
|
|
