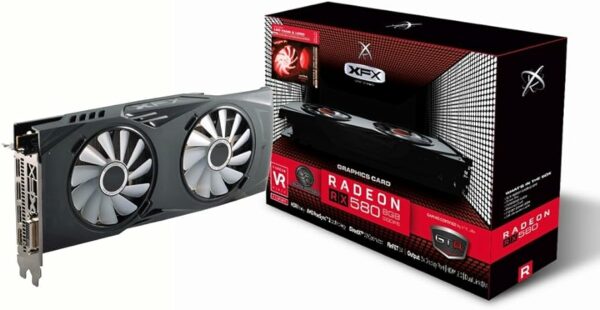

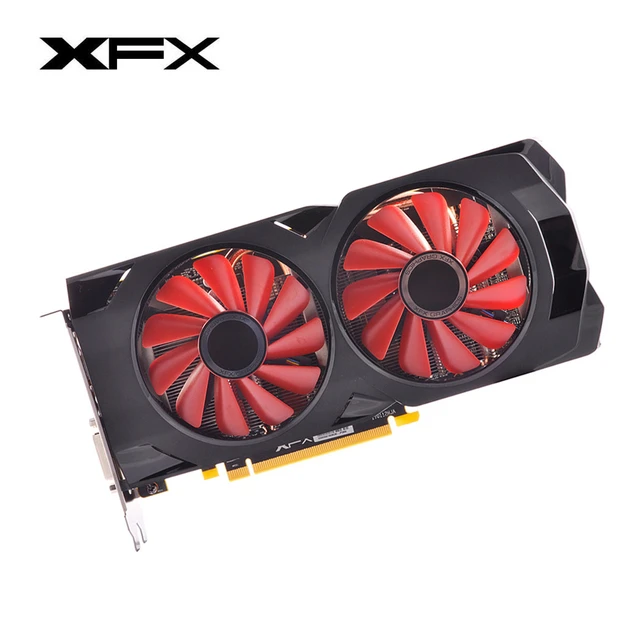

Model Number RX-580P826D6

Product Name AMD Radeon™ RX 580

Product Description GTS XXX ED RX 580 8GB OC+ 1386M D5 BP 3xDP HDMI DVI

Launch Date Apr 18,2017

UPC Number 778656075665

‍

Specifications

Bus Type PCI-E

GPU Clock True:1366MHz, Boost OC+:1386MHz

Stream Processors 2304

Memory Bus 256 bit

Memory Clock True:8.0GHz,  Boost OC+:8.1GHz

Memory Size 8 GB

Memory Type DDR5

Card Profile Dual

Thermal Solution DD Fansink

‍

Outputs

Dual link Support Y

Max Supported Resolution (DIGITAL) 4096 x 2160

Output – Display Port 3

Output – HDMI 1

Output – DL-DVI-D 1

‍

Features

Display Port ready 1.4

HDMI Ready 2.0b

‍

Requirements

External Power – 8-pins 1

Minimum Power Supply Requirement 500 watt

XFX Recommended Power Supply XFX 550W PSU

‍

‍

Technologies

AMD FreeSync™ 2 technology

Radeon™ Chill

ReLive Capture

DirectX® 12

Vulkan™

AMD Virtual Super Resolution (VSR)

Radeon™ Software

AMD CrossFire™ Technology

AMD XConnect™ Ready

AMD Eyefinity Technology

OpenCL™ Support

Polaris Architecture

AMD LiquidVR™ technology

‍

Certifications

RoHS

‍

Package Contents

8-pin to 6-pin power cable 1

Driver Disk Installation Guide 1

Installation DVD 1

‍

Estimated Dimensions And Weights

Card Dimension (cm) 27 x 12.4 x 4

Card Dimension (inch) 10.63 x 4.88 x 1.57

Master Carton Dimensions (cm) 43 x 49 x 35.5

Master Carton Dimensions (inch) 16.93 x 19.29 x 13.98

Master Carton Weight (Kg) 14.5 est.

Master Carton Weight (lb) 31.97 est.

Package Dimensions (cm) 34 x 24 x 8

Package Dimensions (inch) 13.39 x 9.45 x 3.15

Package Weight (Kg) 1.3 est.

Package Weight (lb) 2.87 est.

Units/Carton 10
